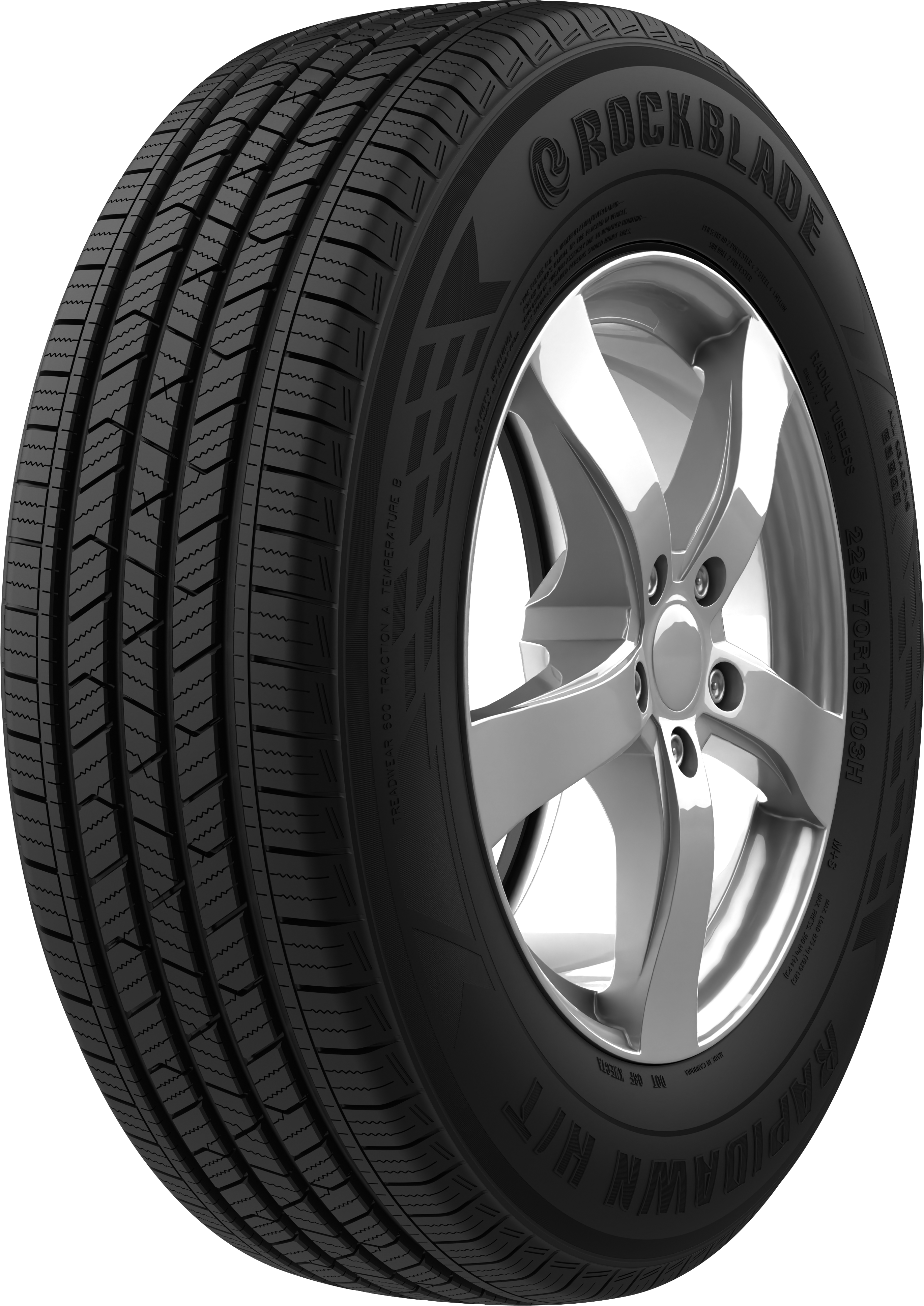

RAPIDAWN HT

Symmetrical pattern design. High mileage, economical and durable Suitable for light off-road

MAXARMO HT ALL SEASON

Tire tread design details

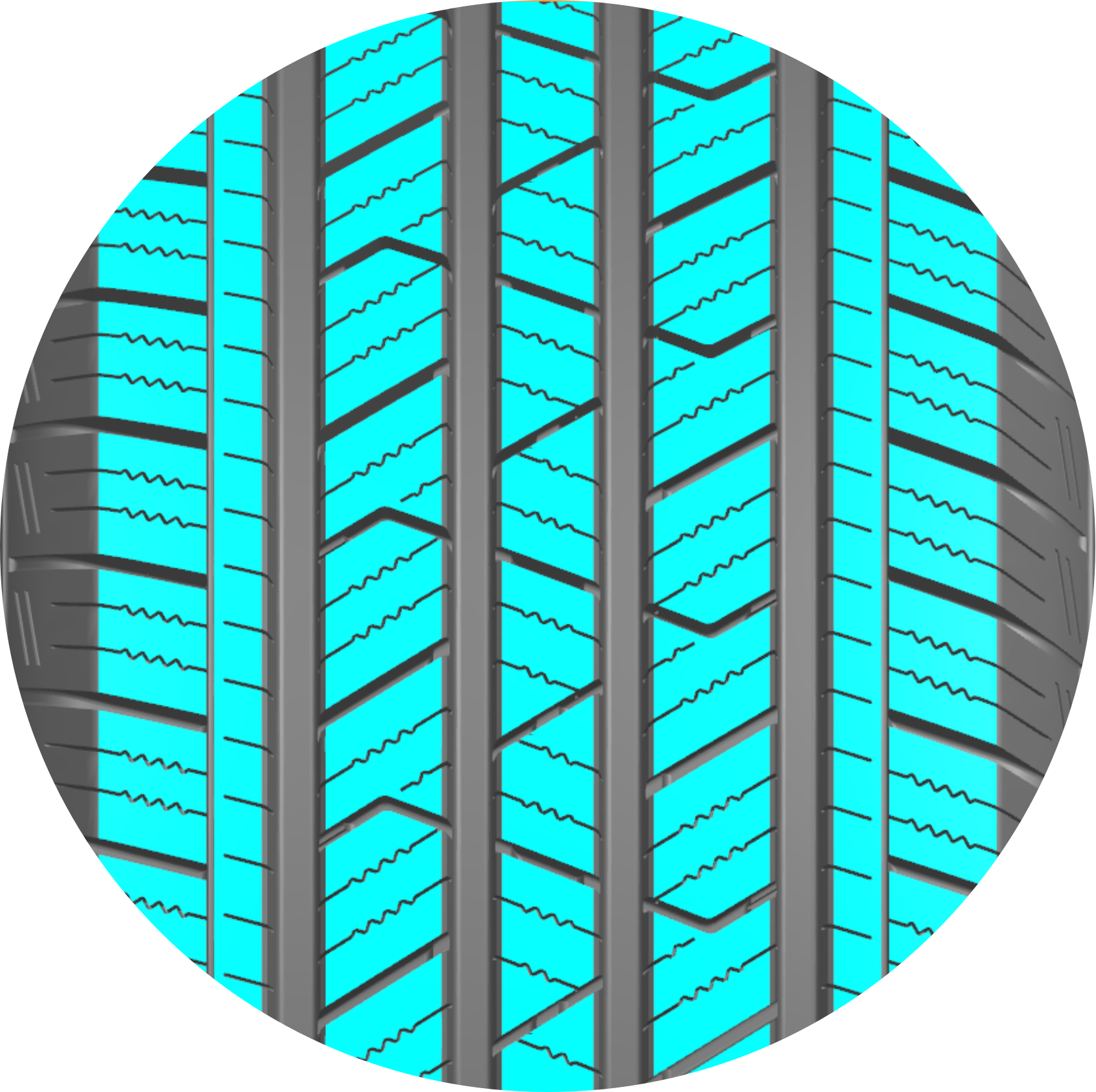

Silica-enhanced tread compound

Optimized sea-to-land ratio design and silica-enhanced tread compound extend tread life and prevent uneven tread wear.

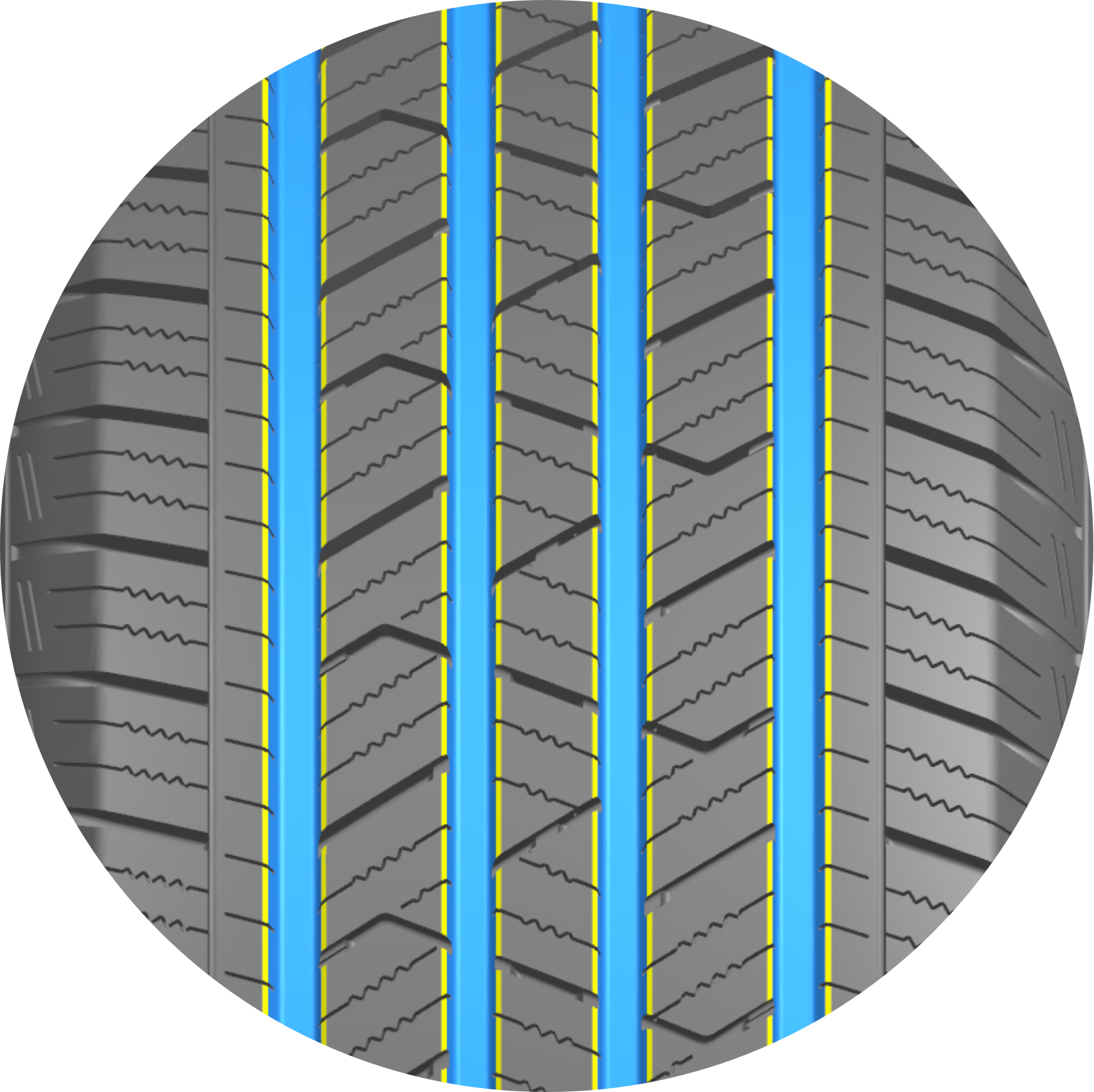

Wide circumferential grooves and transverse grooves

Provides stable grip and control in rainy and winter conditions.

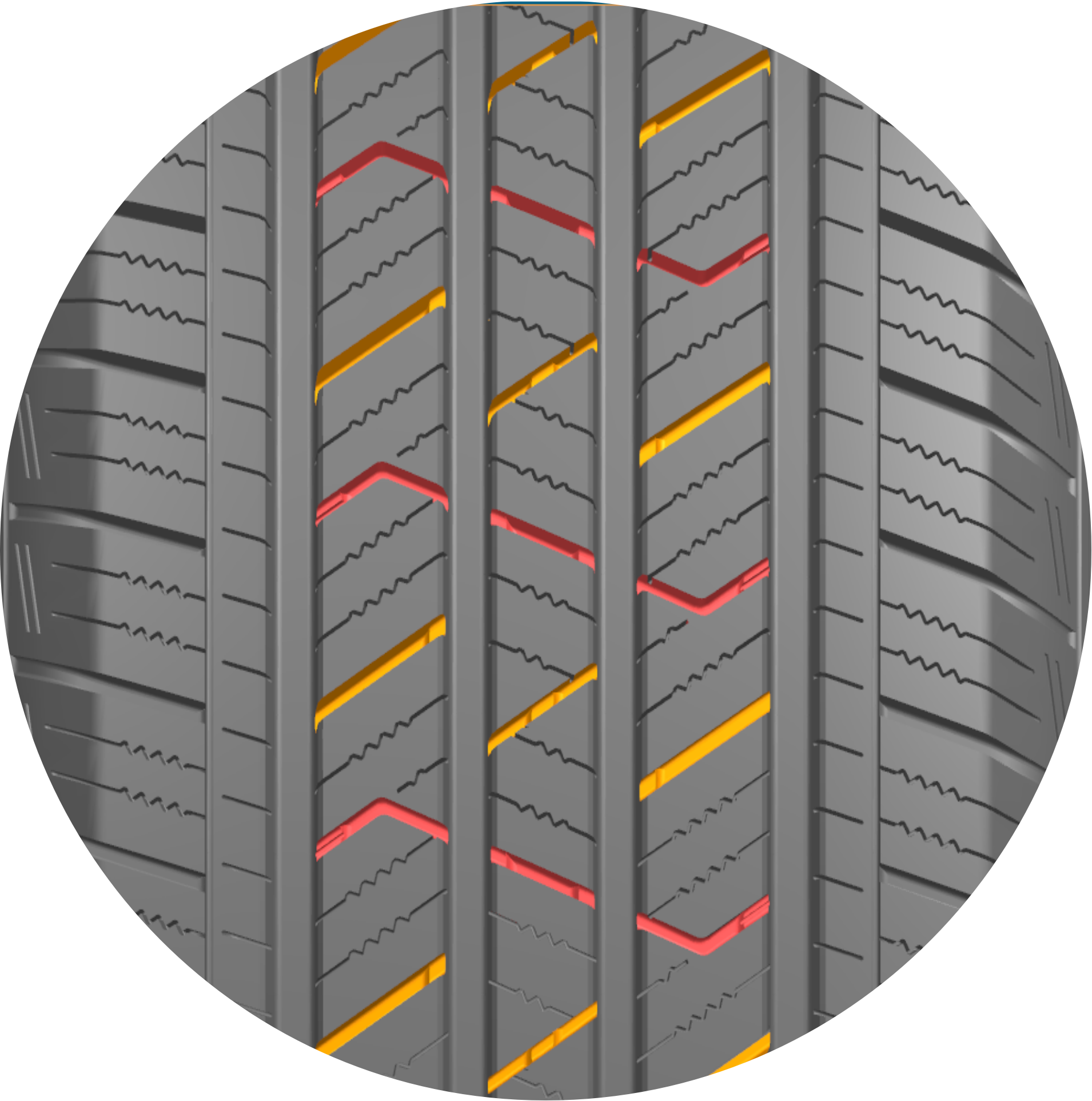

Center interlocking sipes

Provides all-season traction on dry roads and inclement weather

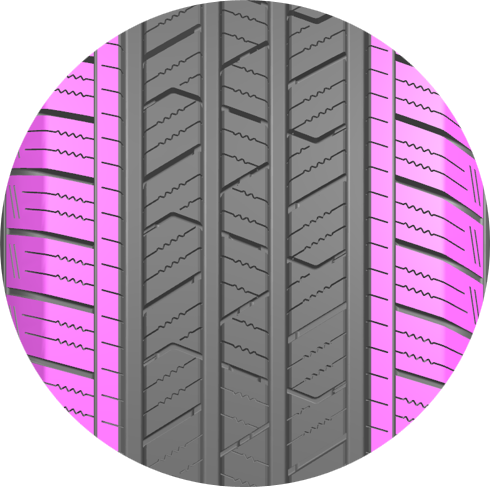

Closed shoulder design

Circumferentially continuous shoulder block design and larger shoulder tread blocks improve cornering and maneuverability.

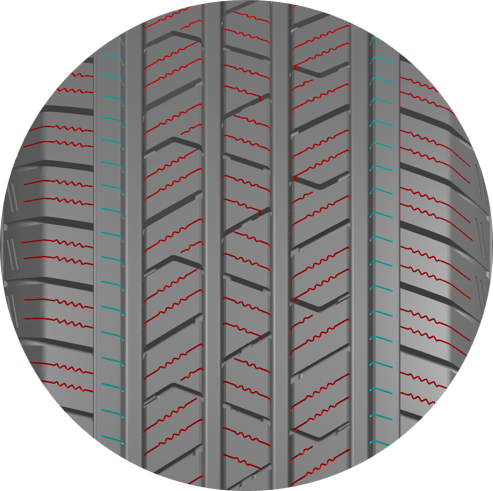

Interlocking steel sheet layout design

Provides stable grip on dry roads and inclement weather.

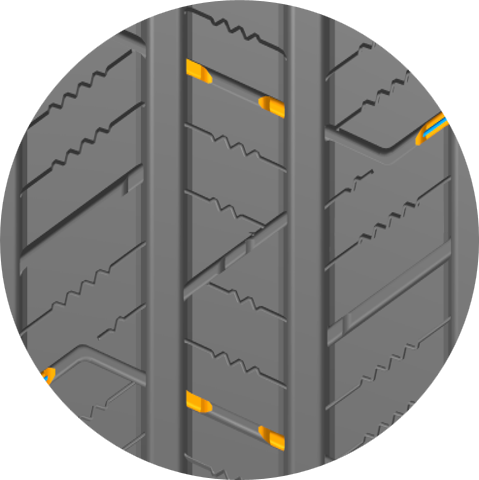

Design of Groove Reinforcement Strips

Optimize and enhance the flexing performance of the tire tread blocks, optimize the rigidity of the tread blocks, and prolong the service life of the tires.

15”

16”

17”

18”

20”

Product Parameters

Size	LI/SI	Ply	Depth(mm)	Rim	SW(mm)	OD(mm)	load Index(kg)	load Index(Lbs)	Max Pressure(Kpa/Psi)	UTQG
235/75R15	109T XL	4PR	8.3	6½J	235	733	1030	2271	340/50	600 A B
225/70R16	103H	4PR	8.3	6½J	228	722	875	1929	300/44	600 A B
215/70R16	100H	4PR	8.3	6½J	221	708	800	1764	300/44	600 A B
245/70R16	107H	4PR	8.3	7J	248	750	975	2149	300/44	600 A B
245/75R16	111H	4PR	8.3	7J	248	774	1090	2403	300/44	600 A B

Size	LI/SI	Ply	Depth(mm)	Rim	SW(mm)	OD(mm)	load Index(kg)	load Index(Lbs)	Max Pressure(Kpa/Psi)	UTQG
265/70R16	112H	4PR	8.7	8J	272	778	1120	2469	300/44	600 A B
215/65R16	102H XL	4PR	8.3	6½J	221	686	850	1874	340/50	600 A B
235/65R16	107H XL	4PR	8.3	7J	240	712	975	2149	340/50	600 A B
235/70R16	106H	4PR	8.3	7J	240	736	950	2094	300/44	600 A B
255/70R16	111H	4PR	8.7	7½J	260	764	1090	2403	300/44	600 A B
265/75R16	116H	4PR	8.7	7½J	267	804	1250	2756	300/44	600 A B
235/65R16C	121/119R	10PR	8.3	7J	240	712	1450/1360	3195/3000	575/83
LT225/75R16	115/112S	10PR	9.5	6J	223	744	1215/1120	2680/2470	550/80
LT245/75R16	120/116S	10PR	9.5	7J	248	774	1380/1260	3042/2778	550/80
LT215/85R16	115/112S	10PR	8.7	6J	216	772	1215/1120	2680/2470	550/80
LT235/85R16	120/116S	10PR	9.5	6½J	235	806	1380/1260	3042/2778	550/80
LT265/75R16	123/120S	10PR	10.3	8J	267	804	1550/1400	3415/3085	550/80

Inch	Size	LI/SI	Ply	Depth(mm)	Rim	SW(mm)	OD(mm)	load Index(kg)	load Index(Lbs)	Max Pressure(Kpa/Psi)	UTQG
17	215/60R17	96V	4PR	8.3	6½J	221	690	710	1565	300/44	600 A B
17	215/65R17	99V	4PR	8.3	6½J	221	712	775	1709	300/44	600 A B
17	225/60R17	99H	4PR	8.3	6½J	228	702	775	1709	300/44	600 A B
17	225/65R17	102H	4PR	8.3	6½J	228	724	850	1874	300/44	600 A B
17	235/60R17	102H	4PR	8.3	7J	240	714	850	1874	300/44	600 A B
17	235/65R17	108H XL	4PR	8.3	7J	240	738	1000	2205	340/50	600 A B
17	265/70R17	115H	4PR	8.7	8J	272	804	1215	2679	300/44	600 A B
17	215/70R17	101H	4PR	8.3	6½J	221	734	825	1819	300/44	600 A B
17	245/70R17	107H	4PR	8.3	7J	248	760	975	2149	300/44	600 A B
17	245/75R17	110H	4PR	8.3	7J	248	796	1060	2337	300/44	600 A B
17	255/70R17	112H	4PR	8.7	7½J	260	790	1120	2469	300/44	600 A B
17	265/65R17	112H	4PR	8.7	8J	272	790	1120	2469	300/44	600 A B
17	LT235/80R17	120/117S	10PR	9.5	6½J	235	808	1400/1285	3095/2835	550/80
17	LT245/75R17	121/118S	10PR	9.5	7J	248	800	1450/1320	3195/2910	550/80
17	LT265/70R17	118/115S	8PR	9.5	8J	272	804	1320/1215	2910/2680	450/65
17	LT245/70R17	119/116S	10PR	9.5	7J	248	776	1360/1250	3015/2755	550/80

Size	LI/SI	Ply	Depth(mm)	Rim	SW(mm)	OD(mm)	load Index(kg)	load Index(Lbs)	Max Pressure(Kpa/Psi)	UTQG
225/60R18	100H	4PR	8.3	6½J	228	722	800	1764	300/44	600 A B
235/60R18	107V XL	4PR	8.3	7J	240	739	975	2149	340/50	600 A B
245/65R18	105V	4PR	8.3	7J	248	751	925	2039	300/44	600 A B
275/65R18	116H XL	4PR	8.7	8J	279	815	1250	2756	300/44	600 A B
235/65R18	110H XL	4PR	8.3	7J	240	763	1060	2337	340/50	600 A B
255/70R18	113H	4PR	8.7	7½J	260	815	1150	2535	300/44	600 A B
265/60R18	114H XL	4PR	8.7	8J	272	781	1180	2601	340/50	600 A B
265/65R18	116H XL	4PR	8.7	8J	272	801	1250	2756	300/44	600 A B
LT275/65R18	123/120S	10.3	8J	279	815	1550/1400	3415/3085	550/80
LT275/70R18	125/122S	10PR	10.3	8J	279	843	1600/1450	3640/3290	550/80
LT265/70R18	124/121S	10PR	10.3	8J	272	829	1600/1450	3525/3195	550/80

Size	LI/SI	Ply	Depth(mm)	Rim	SW(mm)	OD(mm)	load Index(kg)	load Index(Lbs)	Max Pressure(Kpa/Psi)	UTQG
265/60R20	116T	4PR	8.7	8J	272	829	1250	2756	300/44	600 A B
275/60R20	115H	4PR	8.7	8J	279	838	1215	2679	300/44	600 A B
LT275/65R20	126/123S	10PR	10.3	8J	279	876	1700/1550	3750/3415	550/80
